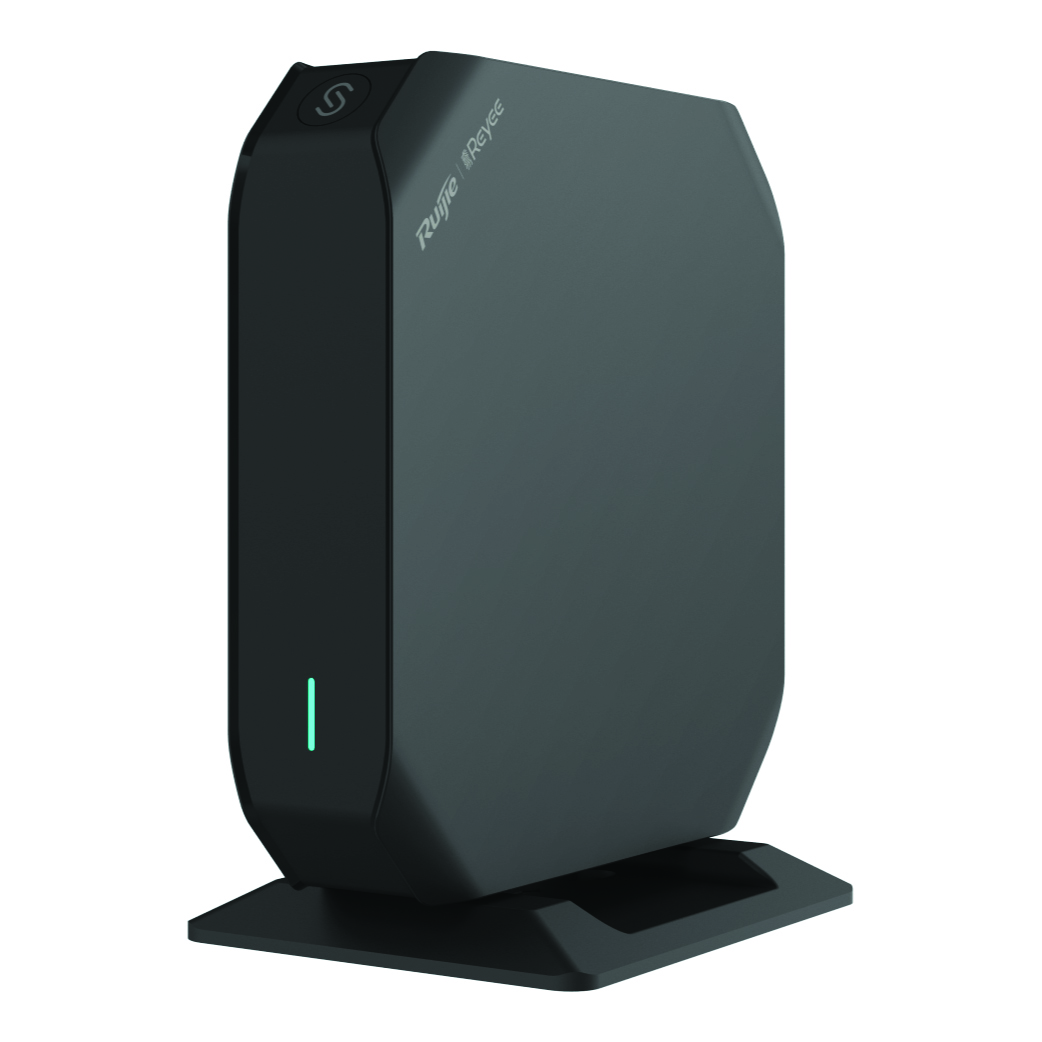

Front View

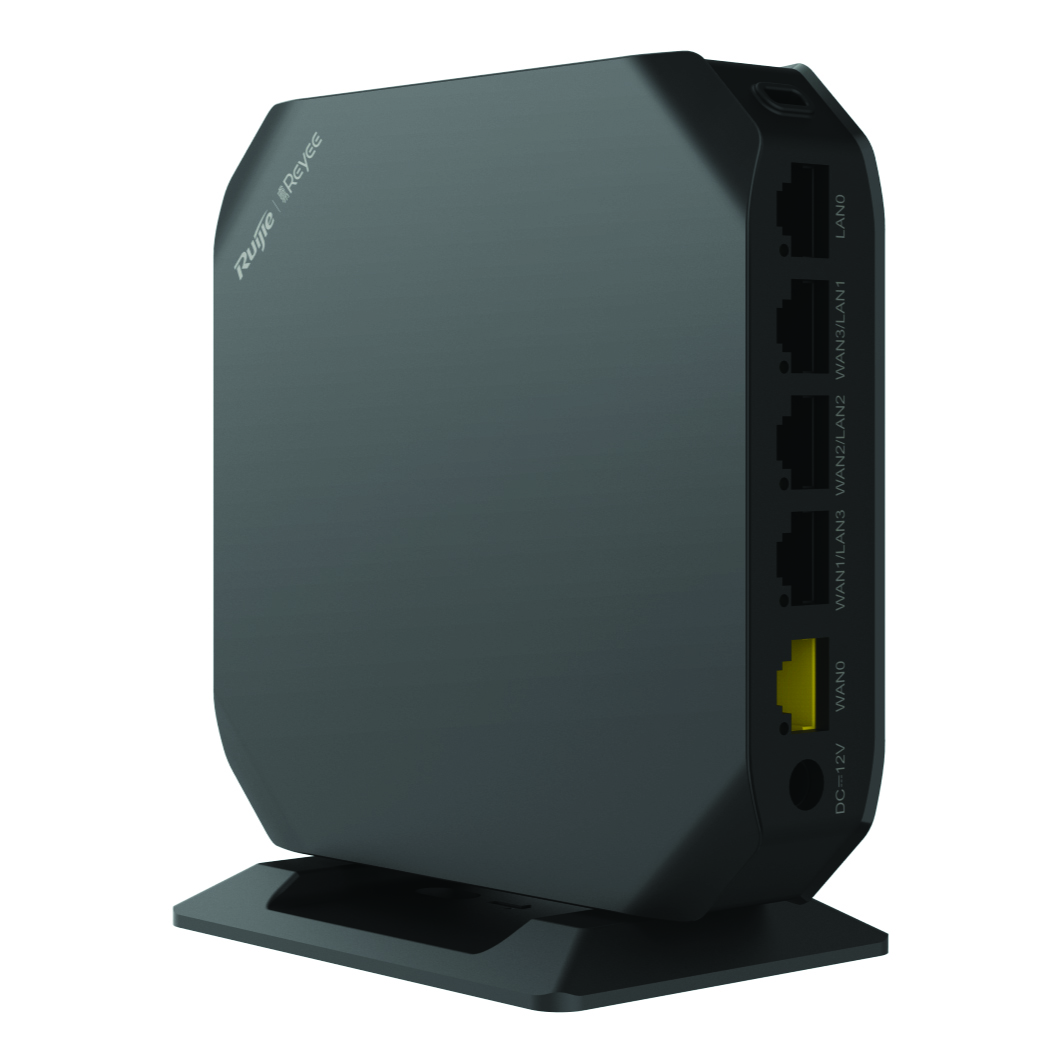

Rear View
1.3 Gbps EG Series Wi-Fi 5 Mesh Gigabit Router Dual-band 802.11ac Wave 2
57MM-WR07
Coming Soon
Product Summary
The 57MM-WR07 is a high-performance Wi-Fi 5 Gigabit mesh router, delivering speeds of up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, for a combined total of 1,267 Mbps. Equipped with built-in omnidirectional antennas, it offers a sleek and modern appearance while ensuring Wi-Fi coverage throughout homes, offices, and commercial spaces. Seamlessly integrate with other EG series routers and Reyee access points using mesh technology, and manage your network easily via the free cloud-based app.
View More Networking and Data
Features and Benefits
- Wi-Fi 5 dual-band (802.11ac Wave 2): Delivers combined speeds up to 1267 Mbps, supporting up to 150 simultaneous users—ideal for high-density business environments.
- Mesh technology: Enables seamless roaming and unified connectivity when paired with EG series routers and Reyee access points.
- Versatile connectivity: Includes one fixed WAN, one fixed LAN, 3 LAN/WAN switchable ports, and 1 USB 2.0; supports RJ45 10/100/1000 Mbps for flexible deployment.
- Sleek integrated antennas: Built-in omnidirectional antennas provide strong signal coverage in a modern, compact design with options for desktop or wall mounting.
- Enterprise-grade features: Equipped with advanced capabilities to meet the demands of business networks, including multiple VPN protocols.
- Effortless setup and management: Easily configure and control your network with the intuitive Ruijie cloud app.
Specifications
| Basic | |
|---|---|
| Number of Fixed WAN Ports | 1 |
| Number of Fixed LAN Ports | 1 |
| Number of WAN Ports | 4 |
| Number of LAN Ports | 4 |
| WAN Port Rate | 10/100/1000 BASE-T |
| LAN Port Rate | 10/100/1000 BASE-T |
| Number of LAN/WAN Ports | 3 |
| Number of 10/100/1000BASE-T Ports | 5 |
| Number of 10/100/1000/2500BASE-T Ports | NA |
| Number of 100/1000/2.5G/5G/10GBASE-T Ethernet port | NA |
| Number of 1 Gbps Optical Ports (SFP) | NA |
| Number of 10 Gbps Optical Ports (SFP+) | NA |
| Total Number of RJ45 Ports | 5 |
| Total Number of Optical Ports | NA |
| Management Port | NA |
| PoE | No |
| PoE Standard | NA |
| Max. PoE Power Budget | NA |
| Max. Number of PoE Ports | NA |
| Max. Power Output per PoE Port | NA |
| Dimensions (W x D x H) | 120 mm × 120 mm × 28 mm (without mounting plate) |
| Net Weight | 0.251 Kg |
| Hardware specification | |
| Flash Memory | 32 MB SPI NOR FLASH |
| SDRAM | 256 MB |
| CPU | 880 MHz |
| Mounting | Desktop/Wall |
| LEDs | 1 × System LED indicator 3 × Mesh LED indicator |
| Reset Buttons | Yes |
| DC Power Connector Size | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm |
| Cooling | Natural heat dissipation |
| Number of Fans | Fanless |
| Airflow | NA |
| Fan Status Monitoring | NA |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | −40°C to +70°C (−40°F to +158°F) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| IP Rating | IP30 |
| Power Supply Surge Protection | NA |
| Port Surge Protection | ±4 kV (level R PASS) |
| Recommended Concurrent Clients | 150 |
| Hard Disk Drive | NA |
| USB | 1 (USB2.0) |
| Max. Power Consumption | 15 W |
| PoE | No |
| Max. PoE Power Budget | NA |
| Max. Number of PoE Ports | NA |
| Max. Power Output per PoE Port | NA |
| PoE Power Pins | No |
| Power Supply | DC 12V/1.5A |
| Internet Connection Type | PPPoE DHCP Static IP |
| Access Mode Auto Detection | Yes |
| Wi-Fi Support | Yes |
| 2.4 GHz Band | Yes |
| 5 GHz Band | Yes |
| Wi-Fi Protocols (2.4 GHz) | Wi-Fi4: IEEE 802.11b/g/n |
| Wi-Fi Protocols (5 GHz) | Wi-Fi4: IEEE 802.11a/n Wi-Fi5: IEEE 802.11ac Wave2 |
| Wi-Fi Protocols (11AX) | N/A |
| Wireless Data Rates | 1267 Mbps |
| Wireless Data Rate (2.4 GHz) | 400 Mbps |
| Wireless Data Rate (5 GHz) | 867 Mbps |
| Operating Frequency Bands |
2.400 GHz to 2.4835 GHz 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz |
| Antenna Type | Built-in |
| Omni-directional | Yes |
| 2.4 GHz Antenna Gain | 3.0 dBi |
| 5 GHz Antenna Gain | 4.0 dBi |
| Optimal Coverage | 40m Note: This is a reference value in an unobstructed laboratory environment |
| Recommended Wi-Fi Coverage Range (2.4 GHz) | 40m Note: This is a reference value in an unobstructed laboratory environment |
| Recommended Wi-Fi Coverage Range (5 GHz) | 40m Note: This is a reference value in an unobstructed laboratory environment |
| 2.4 GHz Spatial Streams | 2 spatial streams, 2x2 MIMO |
| 5 GHz Spatial Streams | 2 spatial streams, 2x2 MIMO |
| 2.4 GHz Channel Width | Auto/20/40 MHz |
| 5 GHz Channel Width | Auto/20/40/80 MHz |
| 2.4 GHz Max. Transmit Power | 26 dBm |
| 5 GHz Max. Transmit Power | 26 dBm |
| Power Adjustment | Yes |
| Modulation |
OFDM: BPSK@6/9 Mbps, QPSK@12/18 Mbps, 16QAM@24 Mbps, 64QAM@48/54 Mbps DSSS: DBPSK@1 Mbps, DQPSK@2 Mbps, and [email protected]/11 Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM |
| Receiver Sensitivity |
11b: -91dBm(1Mbps), -88dBm(5.5Mbps), -85dBm(11Mbps) 11a/g: -89dBm(6Mbps), -80dBm(24Mbps), -76dBm(36Mbps), -71dBm(54Mbps) 11n: -83dBm(MCS0), -65dBm(MCS7), -83dBm(MCS8), -65dBm(MCS15) 11ac: 20MHz: -83dBm(MCS0), -57dBm(MCS9) 40MHz: -79dBm(MCS0), -57dBm(MCS9) 80MHz: -76dBm(MCS0), -51dBm(MCS9) |
| Concurrent Wireless Clients | 60 |
| 2.4 GHz Concurrent Clients | 16 |
| 5 GHz Concurrent Clients | 64 |
| Software Features | |
| PPPoE Username and Password Learning | Yes |
| Throughput | 600Mbps |
| PPPoE Client | Yes |
| PPPoE Server | Yes |
| Max. Number of PPPoE Accounts | 50 |
| PPPoE Concurrent Connection Limit | 15 |
| IP Address Routing based by ISP | Yes |
| WAN IP Conflict Avoidance | Yes |
| MAC Address Cloning | Yes |
| VLAN | Yes |
| Max. Number of VLANs | 16 |
| Port-based VLAN | Yes |
| Super VLAN | No |
| VLAN Priority | Yes |
| Bandwidth Aggregation | Yes |
| default with Multi VLAN | No |
| In-Room Screen Sharing | No |
| Port Mapping | Yes |
| Number of Port Mapping Rule | 256 |
| NAT Loopback | Yes |
| Link Aggregation | No |
| LAN Link Aggregation | No |
| AC Mode | No |
| Behavior Management | Yes |
| Cloud Print | Yes |
| Application Identification | Yes |
| Application Priority | Yes |
| Application Cache | No |
| Application Control (Yes Time/IP-based Policy) | Yes |
| Traffic Audit | Yes |
| Anti Network Sharing (Modify TTL) | Yes |
| Network-wide Client Management | No |
| Network Supervision | No |
| Log Retention | No |
| Log Audit | Yes |
| Log Upload | Yes |
| Log Server | Yes |
| Maintenance and Fault Diagnosis | Yes |
| Web Authentication | No |
| SMS Authentication | Yes |
| Password-based Authentication | Yes |
| Portal Authentication | Yes |
| 802.1X | No |
| One-Click Authentication | Yes |
| Local Portal Authentication | Yes |
| Voucher Authentication on Ruijie Cloud | No |
| Local Mode of Authentication on Ruijie Cloud | No |
| Custom Portal | Yes |
| RADIUS Client | Yes |
| RADIUS Proxy | Yes |
| Support Authentication Via Radius | No |
| Support duration/traffic Accounting Via Radius | No |
| Support Flowctrl Authorization Via Radius | No |
| Support User Group Authorization Via Radius | No |
| Support duration/traffic quota Via Radius | No |
| Support PAP Authentication | No |
| Support CHAP/MS-CHAPV1/MS-CHAPV2 Authentication | No |
| Support MAC Authentication for Radius | No |
| Third-Party API Integration | No |
| IPTV | Yes |
| L2TP VPN | Yes |
| PPTP VPN | Yes |
| IPSec VPN | Yes |
| OpenVPN | Yes |
| Number of Universal VPN Accounts for L2TP, PPTP, and OpenVPN | 100 |
| IPSec VPN Performance (bi-direction, Typical Packets) IPV4 | 24 Mbps |
| L2TP VPN Performance (bi-direction, Typical Packets) | 140 Mbps |
| PPTP VPN Performance (bi-direction, Typical Packets) | 140 Mbps |
| OPENVPN Performance (bi-direction, Typical Packets) | 24 Mbps |
| Number of IPsec VPN Tunnels | 8 |
| Number of OpenVPN Tunnels | 8 |
| Number of L2TP VPN Tunnels | 8 |
| Number of PPTP VPN Tunnels | 8 |
| VPN HQ/Branch Interconnection | Yes |
| EasyVPN 1.0 | No |
| Number of EasyVPN Tunnels | N/A |
| SSL VPN | N/A |
| Number of SSL VPN Tunnels | N/A |
| RIPng | Yes |
| RIP | Yes |
| OSPFv2 | No |
| OSPFv3 | No |
| WAN Failover | Yes |
| Static Routing | Yes |
| Equal Cost Multi-Path Routing | N/A |
| Policy-Based Routing (PBR) | Yes |
| Interface Active/Standby Switchover | Yes |
| WAN Load Balancing | Yes |
| IP-based Load Balancing | Yes |
| Session-based Load Balancing | Yes |
| Real-Time Load-based Load Balancing | Yes |
| DHCP Server | Yes |
| DHCP Client | Yes |
| DHCP Snooping | N/A |
| DHCP Relay | N/A |
| DNS Client | Yes |
| DNS Server | Yes |
| DNS Proxy | Yes |
| NTP Client | Yes |
| Oray DDNS | N/A |
| DynDNS | Yes |
| No-IP DDNS | Yes |
| Ruijie DDNS | Yes |
| 3322 DDNS | Yes |
| Aliyun DDNS | Yes |
| Cloudflare | Yes |
| NAT | Yes |
| NAPT | Yes |
| UPnP | Yes |
| SNMP | Yes |
| ACL | Yes |
| Time-based ACL | Yes |
| IPv6 ACL | Yes |
| Block LAN/WAN Ping | Yes |
| IP-MAC Binding | Yes |
| MAC Address Filtering | Yes |
| Session Limit | Yes |
| Fraggle Attack Defense | Yes |
| Teardrop Attack Defense | Yes |
| Malformed Packet Attack Defense | Yes |
| Land Attack Defense | Yes |
| Smurf Attack Defense | Yes |
| SYN Flood Attack Defense | Yes |
| Security Zone | Yes |
| Security Logs | Yes |
| Upgrade via App | Yes |
| Reboot via App | Yes |
| Scheduled Reboot | Yes |
| HTTPS Login | Yes |
| Upgrade via eWeb | Yes |
| Upgrade via Ruijie Cloud | Yes |
| Configuration Backup | Yes |
| Factory Reset | Yes |
| Language | Yes |
| Self-Organizing Network (SON) | Yes |
| Device Management | Yes |
| No. of Devices Managed in Router Mode | 150 |
| No. of Devices Managed in AC Mode | N/A |
| Wireless Intelligent Optimization (WIO) | Yes |
| Flow Control | Yes |
| NAT ALG | Yes |
| anyIP | N/A |
| Remote Check on App | Yes |
| ARP Table Size | 1024 |
| ARP Binding | Yes |
| Ping | Yes |
| Blocklist and Allowlist | Yes |
| WAN/LAN Conversion | Yes |
| Link Detection | Yes |
| Multi WAN with same subnet | Yes |
| Max. Number of Concurrent Connections | 12000 |
| SIP ALG | Yes |
| SD-WAN | Yes |
| Number of SD-WAN Tunnels | 24 |
| Number of branches supported by SD-WAN | 8 |
| SD-WAN performance | 80Mbps |
| IPv6 | Yes |
| App Management | Yes |
| Web Management | Yes |
| Ruijie Cloud Management | Yes |
| Stateful Firewall | Yes |
| Website filtering | Yes |
| Website Auditing | Yes |
| WMM | Yes |
| Layer 2 Client Isolation | Yes |
| Disconnecting Clients with a Low RSSI | Yes |
| RSSI Threshold for Client Access | Yes |
| Package Contents | |
| Power Adapter | Yes |
| Mounting Brackets | 1 (With 4 Foot Pads) |
