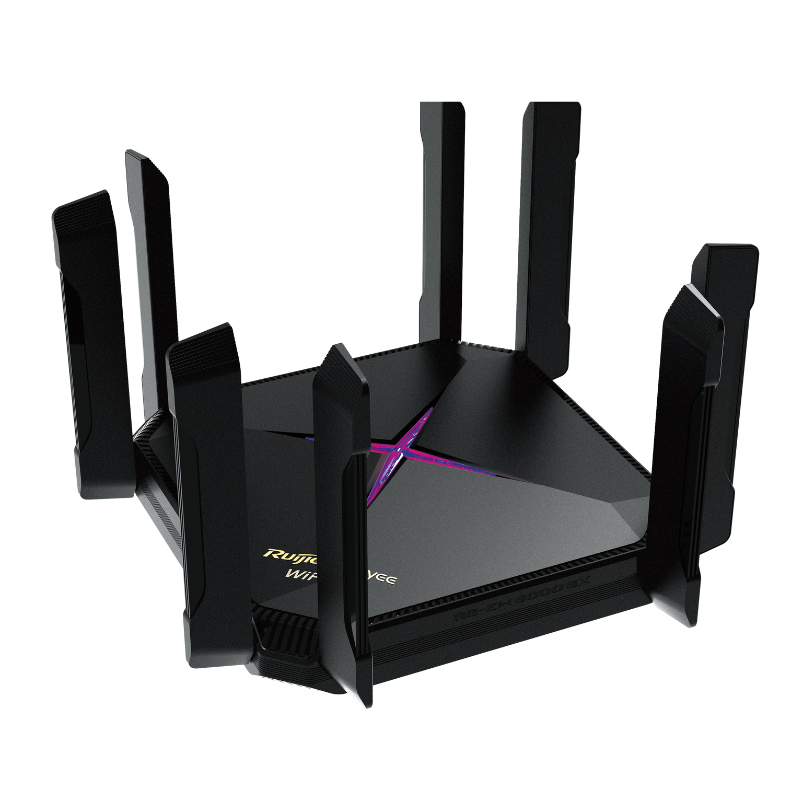

Front View

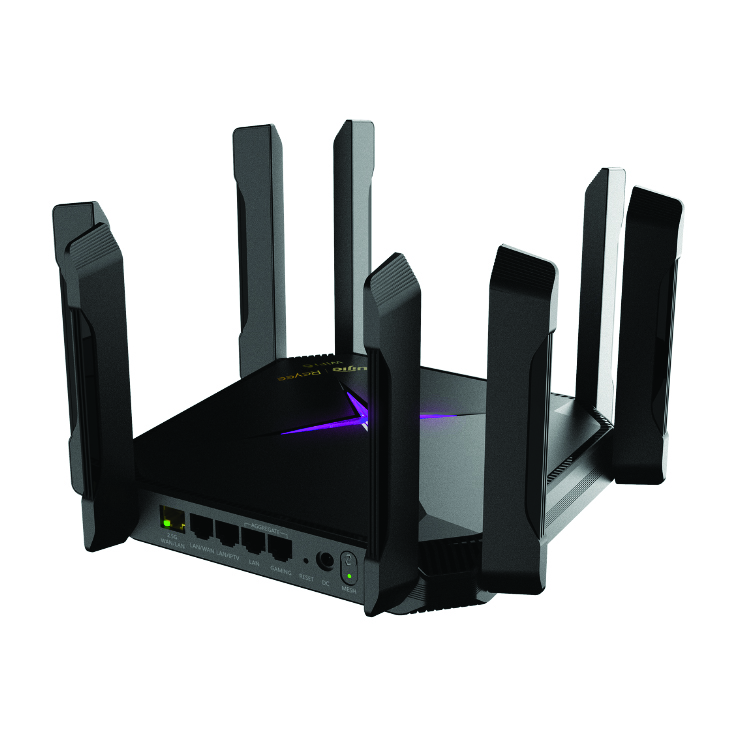

Rear View
6 Gbps Ultra High-Speed Wi-Fi 6 Gaming Mesh Router Dual-band 802.11ax
57MM-WR08
Coming Soon
Product Summary
The 57MM-WR08 is a high-performance Wi-Fi 6 multi-gigabit mesh router, delivering blazing speeds up to 1147 Mbps on 2.4 GHz and 4804 Mbps on 5 GHz—totalling 5951 Mbps. Built for gamers and power users, it includes a dedicated Gaming Port to prioritise critical traffic for streaming, apps, and demanding network tasks. With eight high-gain omnidirectional antennas and eight front-end modules (FEMs), it ensures strong, reliable coverage for homes, offices, and commercial environments. Easily mesh with Reyee EW series routers and manage your network effortlessly through the free cloud-based app.
View More Networking and Data
Features and Benefits
- Ultra-high-speed Wi-Fi 6 supports a 160 MHz bandwidth, achieving 1147 Mbps at 2.4 GHz and 4804 Mbps at 5 GHz, for a total dual-band speed of 5951 Mbps.
- Cutting-edge gaming and home Wi-Fi router with a quad-core enterprise-level chipset with a dedicated Gaming port to prioritise gaming and other critical apps.
- Versatile connectivity: Includes 1 fixed 2.5 Gbps WAN, 1 switchable 1 Gbps LAN/WAN, and 3 x 1 Gbps LAN ports, with dual WAN and dual LAN aggregation supported for ultimate throughput.
- With 8 antennas and 8 FEMs supporting 4 x 4 MIMO, the WR08 helps penetrate walls and eliminate coverage holes, ensuring strong and reliable coverage that makes barriers disappear.
- Mesh technology: Enables seamless roaming and unified connectivity when paired with EW Reyee series routers.
- Effortless setup and management: Easily configure and control your network with the intuitive Ruijie cloud app.
Specifications
| Basic | |
|---|---|
| Wi-Fi standard | Wi-Fi 6 (IEEE 802.11ax) standard, compatible with IEEE 802.11a/b/g/n/ac standards |
| Max. Wi-Fi Speed | 2.4 GHz, 1147 Mbps 5 GHz, 4804 Mbps |
| FEM | iPA |
| Antenna | 8 × external antennas |
| Antenna gain (2.4 GHz) | 5.85 dBi |
| Antenna gain (5 GHz) | 5.66 dBi |
| LAN ports | 4 × 10/100/1000BASE-T ports |
| WAN ports | 1 × 10/100/1000/2500BASE-T port |
| Ruijie Cloud management | Yes |
| Software Specifications | |
| Maximum number of concurrent clients | 128 (2.4 GHz) 256 (5 GHz) |
| Recommended number of concurrent clients | 16 (2.4 GHz) 64 (5 GHz) |
| Recommended camera limit | 6 (2.4 GHz) 16 (5 GHz) |
| 1024-QAM | Yes |
| 802.11k/v roaming | Yes |
| SSID hiding | Yes |
| DFS | Yes |
| Guest Wi-Fi | Yes |
| Encryption mode | WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE |
| Wi-Fi blocklist capacity | 64 |
| Working mode | Wired repeater mode Wireless repeater mode WISP mode AP mode |
| Internet access mode | PPPoE, DHCP, Static IP, L2TP, WISP |
| eWeb login password length | 8 to 63 characters |
| Line detection | Yes |
| Configuration backup | Yes |
| Restoring factory defaults | Yes |
| Reset and keep configurations | Yes |
| Network-wide LED management | Yes |
| Scheduled device restart | Yes |
| MAC address cloning | Yes |
| Specifying the VLAN tag | Yes |
| Local upgrade | Yes |
| Online upgrade | Yes |
| ARP binding | Yes |
| Number of ARP binding entries | 64 |
| Client-based rate limiting | Yes |
| Parental control | Yes |
| NAT | 50 |
| NAT-DMZ | Yes |
| UPnP | Yes |
| No-IP DNS | Yes |
| DDNS | Yes |
| Ruijie DDNS | Yes |
| Multiple IPTV ports | Yes |
| IPTV | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes Note: Not supported by wired connections when IPTV is turned on |
| IPTV/IGMP multicast capacity | 5 |
| IPTV/IGMP client capacity | 5 |
| IPTV/IGMP wired forwarding performance | 25 Mbps |
| Language |
Chinese (Simplified) English Vietnamese Turkish Indonesian Thai Chinese (Hong Kong Traditional) Spanish (Latin America) Russian Arabic Italian |
| WAN aggregation | Yes |
| LAN aggregation | Yes |
| Reyee Mesh 3.0 | |
| Automatic switching between wired and wireless repeater mode | Yes |
| Maximum number of devices | 32 |
| Recommended hop count | 2 |
| Maximum number of clients | 192 |
| Flow control | |
| Flow control based on number of users | Yes |
| Standalone/Shared mode | Yes |
| Interface flow control | Yes |
| Behavior Management | |
| Selecting clients from the client list to block their access to the Internet | Yes |
| Specifying MAC addresses of controlled clients | Yes |
| Client access control (based on MAC addresses) | Yes |
| Client access control (based on time) | Yes |
| Maximum number of controlled clients | 32 |
| Maximum number of parental control policies | 32 |
| VPN | |
| PPTP VPN server | Yes |
| PPTP VPN client | Yes |
| Number of concurrent tunnels supported by the PPTP VPN server | 30 |
| OpenVPN server | Yes |
| Username and password authentication | Yes |
| Certificate authentication | Yes |
| Server domain name configuration | Yes |
| Number of concurrent tunnels supported by the OpenVPN server | 8 |
| OpenVPN bandwidth | 13 Mbps |
| OpenVPN client | Yes |
| Hardware Specifications | |
| MIMO | 2.4 GHz, 4 x 4 5 GHz, 4 x 4 |
| Certification | CE, CB |
| Warranty | 3 years |
| LEDs | 4 x system status LEDs 1 x Mesh LED |
| RAM | 512 MB |
| Power supply | DC 12 V 2.5 A |
| Product dimensions (W x D x H) | 200 mm x 200 mm x 43.8 mm (7.87 in. x 7.87 in. x 1.72 in.) (excluding antennas) |
| Weight | 0.95 kg (2.09 lbs) (without packaging materials) 1.68 kg (3.7 lbs) (with packaging materials) |
| Operating temperature | 0 °C to +40 °C (32 °F to 104 °F) |
| Storage temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Maximum transmit power |
2.4 GHz: 802.11b: 23dBm 802.11g: 6M 23dBm; 54M 20dBm 802.11n: MCS0 23dBm; MCS7: 19dBm 802.11ac: MCS0 23dBm; MCS7: 19dBm; MCS8 18.5dBm; MCS9 18.5dBm 802.11ax: MCS0 23dBm; MCS7: 19dBm; MCS11 16.5dBm 5 GHz: 802.11a: 6M 23dBm; 54M 19dBm 802.11n: MCS0 23dBm; MCS7: 19dBm 802.11ac: MCS0 23dBm; MCS9 17dBm (20M/40M/80M) 802.11ax:MCS0 23dBm; MCS9 17dBm （20M/40M/80M），MCS9 16dBm（160M）; MCS11 16dBm（20M/40M/80M） MCS11 15dBm（160M） Note: The transmit power varies according to regulations in different countries and regions. Frequency bands using and the max EIRP: Note: Country specific restrictions apply European Union & United Kingdom 2400-2483.5 MHz, EIRP≤ 20 dBm 5150-5350 MHz, EIRP≤ 23 dBm 5470-5725 MHz, EIRP≤ 30 dBm Myanmar : 2400-2483.5 MHz, EIRP ≤ 23 dBm 5725-5825 MHz, EIRP ≤ 30 dBm Thailand: 2400-2483.5 MHz, EIRP ≤ 20 dBm 5150-5350 MHz, EIRP ≤ 23 dBm 5470-5725 MHz, EIRP ≤ 30 dBm 5725-5825 MHz, EIRP ≤ 30 dBm Indonesia: 2400-2483.5 MHz, EIRP ≤ 27 dBm 5150-5350 MHz, EIRP ≤ 23 dBm 5725-5825 MHz, EIRP ≤ 23 dBm Egypt： 2400-2483.5 MHz, EIRP ≤ 20 dBm 5150-5350 MHz, EIRP ≤ 23 dBm |
| Opearting Band | IEEE 802.11b/g/n/ax，2.400GHz~2.4835GHz； IEEE 802.11a/n/ac/ax，5.150GHz～5.350GHz； IEEE 802.11a/n/ac/ax，5.470GHz～5.725GHz； IEEE 802.11a/n/ac/ax，5.725GHz～5.850GHz； |
