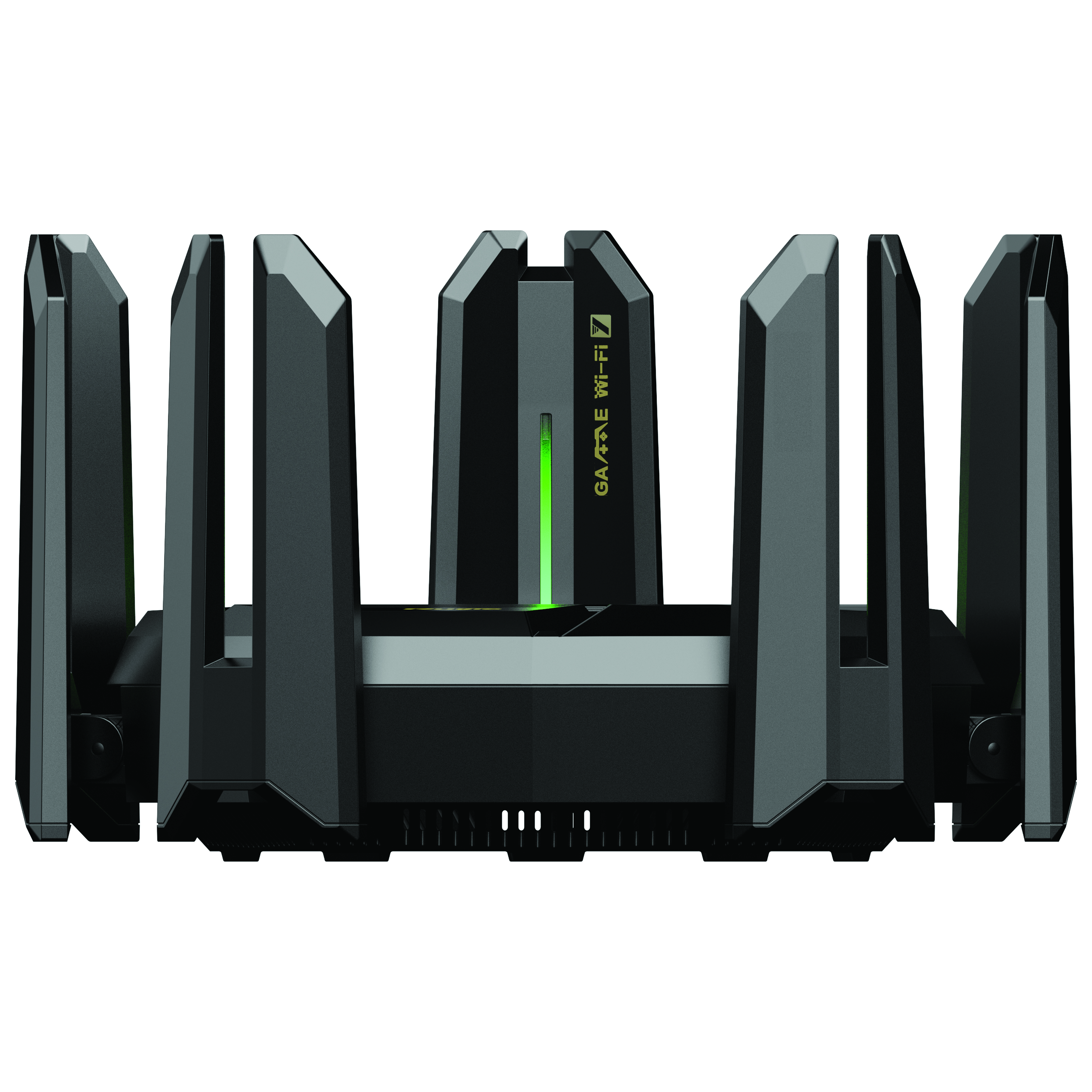

Front View

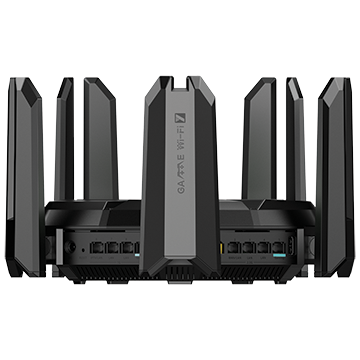

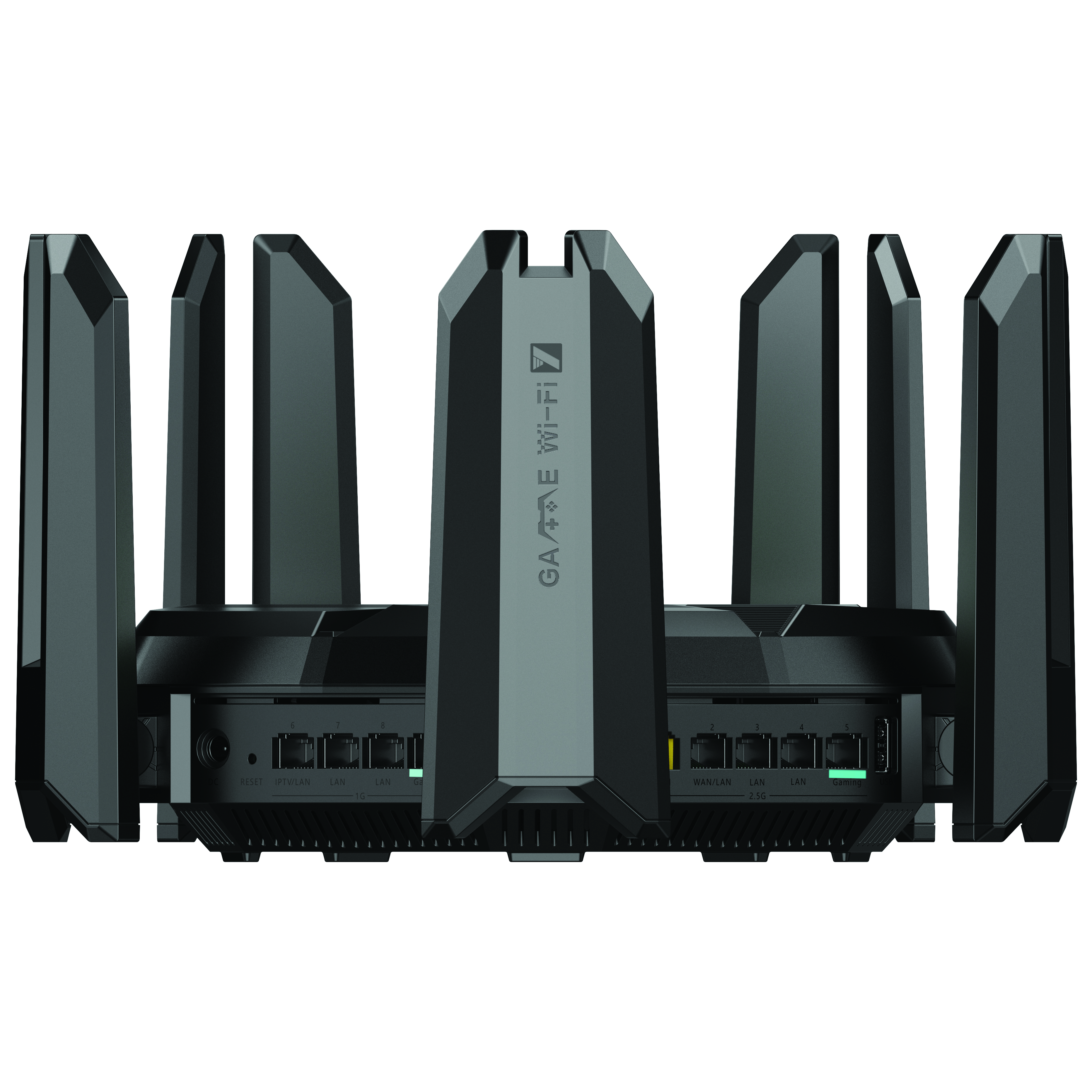

Rear View
7.2 Gbps Ultra High-Speed Wi-Fi 7 Gaming Mesh Router Dual-band 802.11be
57MM-WR701
Coming Soon
Product Summary
The 57MM-WR701 is a next-gen, ultra-high-performance Wi-Fi 7 multi-gigabit mesh router, delivering speeds up to 1377 Mbps on 2.4 GHz and 5765 Mbps on 5 GHz—an outstanding combined total of 7142 Mbps. Engineered for gamers and power users, it features dedicated 2.5 Gbps Gaming Ports to prioritise high-demand traffic for streaming, applications, and network-intensive tasks. With nine high-gain omnidirectional antennas and nine front-end modules (FEMs), the WR701 delivers robust, far-reaching coverage for homes, offices, and commercial spaces. Seamlessly mesh with other Reyee EW series routers and manage your network effortlessly via the free cloud-based app.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- Unmatched gaming speed with Wi-Fi 7, 1377Mbps at 2.4 GHz and 5765 Mbps at 5 GHz for a dual-band total speed of 7142 Mbps.
- Cutting-edge router offering speeds up to 7200 Mbps, featuring MLO and MRU for superior performance, it delivers exceptional coverage and stability with dedicated Gaming ports and Wi-Fi to prioritise gaming and other critical apps.
- Versatile connectivity: Includes one fixed 2.5 Gbps WAN, one switchable 2.5 Gbps LAN/WAN, 3 x LAN 2.5 Gbps and 4 x 1 Gbps LAN ports, and 1 USB 3.0
- With 9 antennas and 9 FEMs, the WR701 helps penetrate walls and eliminate coverage holes, ensuring strong and reliable coverage that makes barriers disappear.
- Mesh technology: Enables seamless roaming and unified connectivity when paired with the EW Reyee series routers.
- Effortless setup and management: Easily configure and control your network with the intuitive Ruijie Cloud App.
Specifications
| Basic | |
|---|---|
| Dimensions (W×D×H) | 214mm x 209mm x 60mm (antennas not included) |
| Weight | 0.739 kg (packages not included) |
| Wi-Fi Standards | Wi-Fi 7 (IEEE 802.11be) |
| MIMO | 2.4G: 4 x 4 MIMO 5G: 4 x 4 MIMO |
| Max. Wi-Fi Speed | 2.4 GHz: 1377 Mbps 5 GHz: 5765 Mbps |
| Channel Width | 2.4 GHz: Auto/20/40 MHz 5 GHz: Auto/40/80/160 MHz |
| Antennas | 2.4G*4 + 5G*5 |
| Antennas Type | External Omnidirectional |
| Antenna Gain | 2.4 GHz: 4 dBi 5 GHz: 5 dBi |
| Ports |
1 x 10/100/1000/2500Mbps WAN 1 x 10/100/1000/2500Mbps WAN/LAN 3 x 10/100/1000/2500Mbps LAN 4 x 10/100/1000Mbps LAN |
| USB Support | 1× USB 3.0 Port |
| Recommended Users | 96 |
| Max. Users | 512 |
| Power Supply | DC 12V/3.0A |
| Power Consumption | < 36 W |
| Operation Frequency Bands |
802.11b/g/n/ax/be: 2.400 GHz to 2.483 GHz 802.11a/n/ac/ax/be: 5.150 GHz to 5.350 GHz 802.11a/n/ac/ax/be: 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz country-specific restrictions apply |
| Transmit Power | General: CE EIRP: ≤20dBm (2.4GHz) ≦27dBm (5GHz) Myanmar 2400~2483.5MHz ≦ 20dBm (EIRP) 5150~5350MHz ≦ 23dBm (EIRP) 5470~5725MHz ≦ 30dBm (EIRP) 5725~5850MHz ≦ 30dBm (EIRP) |
| Receive Sensitivity |
802.11b: -96 dBm (1 Mbps) 802.11g: -91 dBm (6 Mbps), -72 dBm (54 Mbps) 802.11n: -89 dBm (MCS0), -68 dBm (MCS7) 802.11ax: -88 dBm (MCS0), -69 dBm (MCS7), -58 dBm (MCS11) 802.11be: -89 dBm (MCS0), -71 dBm (MCS7), -53 dBm (MCS13) 5 GHz: 802.11a: -92 dBm (6 Mbps), -60 dBm (54 Mbps) 802.11n: -89 dBm (MCS0), -68 dBm (MCS7) 802.11ac: -85 dBm (MCS0), -67 dBm (MCS7), -60 dBm (MCS9) 802.11ax: -88 dBm (MCS0), -69 dBm (MCS7), -58 dBm (MCS11) 802.11be: -86 dBm (MCS0), -68 dBm (MCS7), -50 dBm (MCS13) |
| Operating Temperature | -10 °C to +40 °C (14 °F to 104 °F) |
| Operating Humidity | 5% to 95% Noncondensing |
| Certifications | CE |
| Wireless | |
| OFDMA | - |
| MU-MIMO | Support |
| BSS Coloring | Support |
| Maximum Number of SSIDs | 6 |
| SSID Hiding | Support |
| Band Steering | Support |
| Guest Wi-Fi | Support |
| WPA/WPA2 | Support |
| WPA3 | Support |
| Roaming | Layer 2 Roaming |
| Blocklist | Support |
| Reyee Mesh | Support |
| Mesh Pairing by Hardware | Support |
| Mesh Pairing by Mesh Button | Support |
| Mesh Pairing by Eweb | Support |
| Recommended Hop Count | ≦2 |
| Wi-Fi Optimization | - |
| QoS (WMM) | Support |
| WPS | - |
| Transmission Power Adjustment | Support |
| Hardware | |
| CPU | MT7992 |
| Flash | 256MB |
| RAM/SDRAM | 1G |
| Color | Black |
| System LED Indicator | Support |
| Reyee Mesh LED Indicator | Support |
| Reyee Mesh Button | Support |
| Power Button | - |
| Reset Button | Support |
| DC Connector Dimensions | outer diameter: 5.5 mm; inner diameter: 2.1 mm; depth: 10.0 mm |
| WAN | |
| Static IP | Support |
| DHCP | Support |
| PPPoE | Support |
| L2TP WAN | - |
| Learning PPPoE Account & Password | Support |
| VLAN Tagging | Support |
| LAN | |
| DHCP Server | Support |
| Client List | Support |
| Static IP Assignment | Support |
| Port-Based Flow Control | Support |
| Features | |
| IPv6 | Support |
| Preset | Support |
| DDNS | Support |
| IPTV | Support |
| Alarm | Support |
| Diagnosis | Support |
| UPnP | Support |
| ARP Binding | Support |
| Port Mapping | Support |
| DMZ Host | Support |
| Rate Limitation of Terminals | Support |
| Hardware Acceleration | Support |
| Game Acceleration | Support |
| MAC Address Cloning | Support |
| Cloud Management | Support |
| Repeater Mode | Support |
| WISP Mode | Support |
| AP Mode | Support |
| Security | |
| PPTP VPN Server | - |
| PPTP VPN Client | - |
| L2TP VPN Client | - |
| Parental Control | Time Schedule |
| Protect TCP Flood Attacks | Support |
| Protect ICMP Attacks | - |
| Protect UDP Flood Attacks | - |
| System | |
| Default Access/Password | 192.168.110.1 No Password Required by Default |
| URL Access | Support |
| Local Upgrade | Support |
| Online Upgrade | Support |
| APP Upgrade | Support |
| Syslog | Support |
| Backup | Support |
| Factory Reset | Support |
| Language |
Chinese English Vietnamese Turkish Indonesian Thai traditional Chinese Spanish Russian Arabic Ukrainian Czech Italian |
