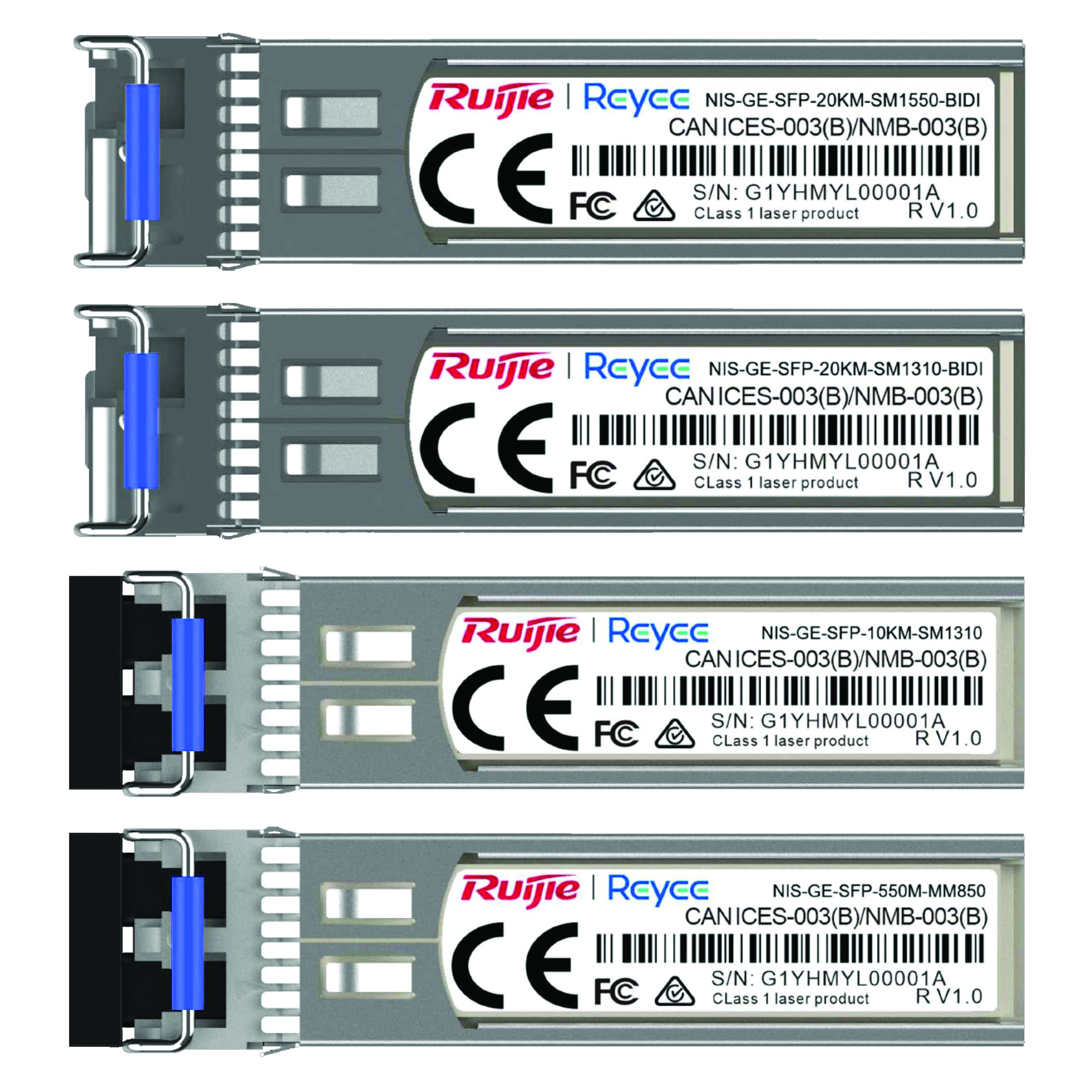

Front View
Gigabit SFP Optical Transceiver Modules
Coming Soon
Product Summary
The 57MM-SFP series of Small Form-Factor Pluggable (SFP) transceiver modules are engineered for seamless compatibility with Matchmaster’s range of Ruijie network devices, including switches, routers, and access points. Delivering reliable Gigabit connectivity, these modules are built to handle networking requirements of any scale with consistent performance and dependability.
View More Networking and Data
Features and Benefits
- Superior Quality and Performance: High-performance Gigabit SFP transceivers built to deliver reliable, high-speed connectivity—backed by a 5-year factory warranty for peace of mind.
- Hot-Swappable Design: SFP modules function as I/O devices that support hot swapping, allowing quick replacements or upgrades without system downtime.
- Fibre Connectivity: Ideal for linking network devices across fibre optic networks, ensuring fast and stable data transmission.
- Versatile Fibre Support: Compatible with both Multimode and Single-Mode fibre solutions to suit a range of network infrastructures.
- Flexible Configuration Options: Available in bidirectional (BiDi) for single-mode, single-core fibre and in duplex for both single-mode and multimode applications, providing greater deployment flexibility.
Product Range
| Product Code | Product Description | Ruijie Part Number |
|---|---|---|
| 57MM-SFP01 | Gigabit Multimode 850nm SFP Module - Duplex LC 550m | NIS-GE-SFP-550M-MM850 |
| 57MM-SFP02 | Gigabit Single-Mode 1310nm SFP Module - Duplex LC 10km | NIS-GE-SFP-10KM-SM1310 |
| 57MM-SFP03 | Gigabit Single-Mode TX1310nm/RX1550nm SFP Module - BIDI LC 20km | NIS-GE-SFP-20KM-SM1310-BIDI |
| 57MM-SFP04 | Gigabit Single-Mode TX1550nm/RX1310nm SFP Module - BIDI LC 20km | NIS-GE-SFP-20KM-SM1550-BIDI |
Specifications
| Model | 57MM-SFP01 | 57MM-SFP02 | 57MM-SFP03 | 57MM-SFP04 |
|---|---|---|---|---|
| Standard | Short wavelength | Long wavelength/Long distance | Long wavelength/Long distance | Long wavelength/Long distance |
| Rate | 1000 Mbps | 1000 Mbps | 1000 Mbps | 1000 Mbps |
| Wavelength (nm) | 850 | 1310 | TX: 1310 RX: 1550 |
TX: 1550 RX: 1310 |
| Fiber Type | MMF | SMF | SMF | SMF |
| DDM (Yes/No) | Yes | Yes | Yes | Yes |
| Transmitter Power (dBm) Min. |
–9.5 | –9.5 | –9 | –9 |
| Transmitter Power (dBm) Max. |
–3 | –3 | –3 | –3 |
| Receiver Power (dBm) Min. |
–17 | –20 | –22 | –22 |
| Receiver Power (dBm) Max. |
0 | –3 | –3 | –3 |
| Connector Type | L/C | L/C | L/C | L/C |
| Core Size (µm) | 50/125 | 9/125 | 9/125 | 9/125 |
| Max. Cabling Distance | 550 m (1640.42 ft) | 10 km (32808.40 ft) | 20 km (65616.80 ft) | 20 km (65616.80 ft) |
| Operating Temperature | –40 to +85°C (–40 to +185°F) | |||
| Storage Temperature | –40 to +85°C (–40 to +185°F) | |||
| Relative Humidity | 10% RH to 90% RH (non-condensing) | |||
