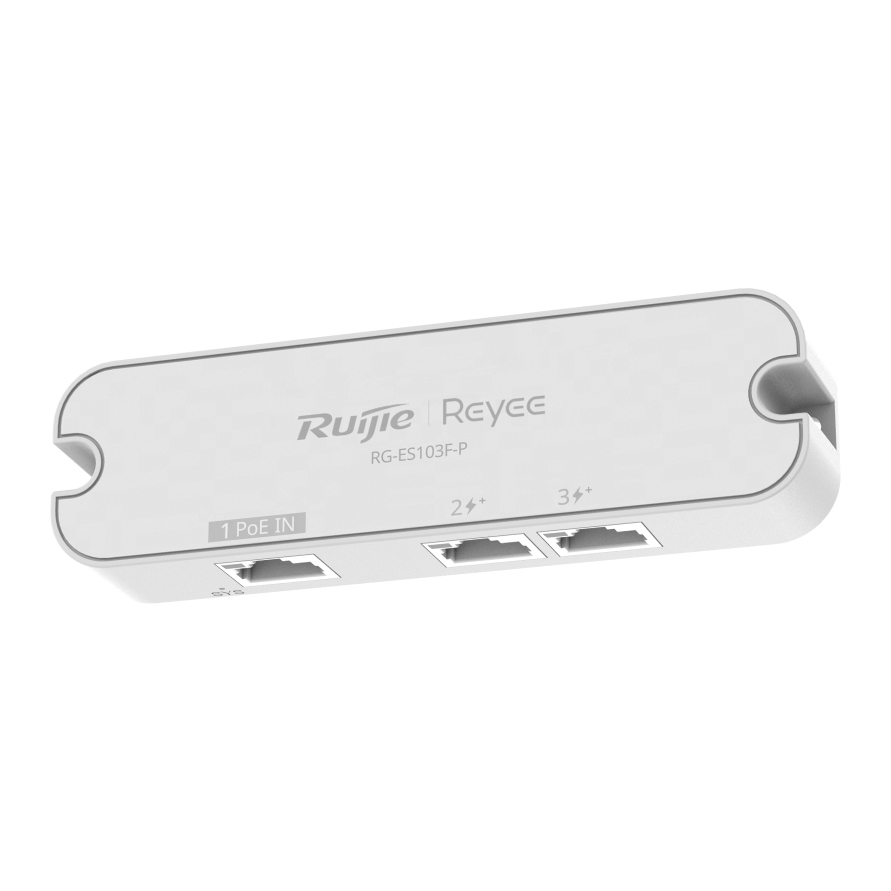

Front View
3-Port PoE Unmanaged Switch - PoE Splitter - Max 30 W
RG-ES103F-P
Product Summary
The Ruijie Reyee RG-ES103F-P is a compact, cost-effective 3-port unmanaged PoE switch designed for simple surveillance deployments. Powered via its PoE input, it uses the incoming PoE power to provide PoE output through two ports for up to two IP cameras. Its 30 W PoE budget and plug-and-play operation make network and power extension quick and easy.
View More Networking and Data
3-Year Manufacturer’s Warranty
For full terms & conditions, please see – Ruijie Warranty T&Cs.
Features and Benefits
- One 10/100BASE-T PoE+ input and two PoE+ output ports provide a simple way to extend both network connectivity and power to connected devices.
- A 30 W PoE budget with IEEE 802.3af/at support enables the switch to power up to two compatible PoE devices, using power received through its PoE input—no separate power supply is required.
- Support for up to two concurrent camera connections provides a cost-effective solution for expanding small CCTV networks.
- Plug-and-play unmanaged operation enables quick installation without complex configuration, helping reduce deployment time and effort.
- Compact, fanless natural cooling with wall or desktop mounting provides quiet, flexible installation in space-constrained environments.
- 4 kV service-port surge protection and a 200,000-hour MTBF help deliver reliable operation and added protection for connected network equipment.
Specifications
Hardware Specifications
Dimensions and Weight
| Casing | plastic |
| Product dimensions (W x D x H) | 120mm x 34mm x 20.5mm |
| Weight | 0.05 kg (0.11 lbs) |
| Shipping weight | 0.114 kg (0.25 lbs) |
System Specifications
| Forwarding rate | 0.45 Mpps |
| Switching capacity | 0.6 Gbps(Gbit/s) |
Power Supply and Consumption
| PoE Out standard | IEEE 802.3af/at (PoE/PoE+) |
| Number of PoE Out ports | 2 |
| Number of PoE/PoE+ Out ports | 2 |
| PoE budget | 30 W |
| PoE power pins | 1-2(+), 3-6(-) |
| Power input | PoE/HPoE Ethernet Power Supply: Compliant with 802.3af/at Ethernet Power Supply Standards |
| Maximum power consumption | 32.5W (with full PoE load) 2.5W (without PoE load) |
| Power supply | PoE Ethernet Power Supply |
Port Specifications
| Total number of RJ45 ports | 3 |
| Number of 10/100BASE-T ports | 3 |
Environment and Reliability
| Cooling | Natural cooling |
| Mounting options | Wall/Desk |
| MTBF | 200,000 hours |
| Operating temperature | 0℃~40°C |
| Storage temperature | -40℃~70°C |
| Operating humidity | 10% RH to 90% RH (non-condensing) |
| Storage humidity | 5% RH to 95% RH (non-condensing) |
| Altitude | –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.) |
| ESD protection | Air discharge: 6 kV Contact discharge: 4 kV |
| Surge protection | Service port: ±4 kV for common mode |
Certification and Regulatory Compliance
| EMC | EN 55032 EN IEC 61000-3-2 EN 61000-3-3 EN 55035 EN 300 386 |
| Safety compliance | EN 62368-1 IEC 62368-1 |
| Certification | CE, CB |
Package Contents
Device
| Device | 1 |
Manual
| User Manual | 1 |
| Warranty Card | 1 |
