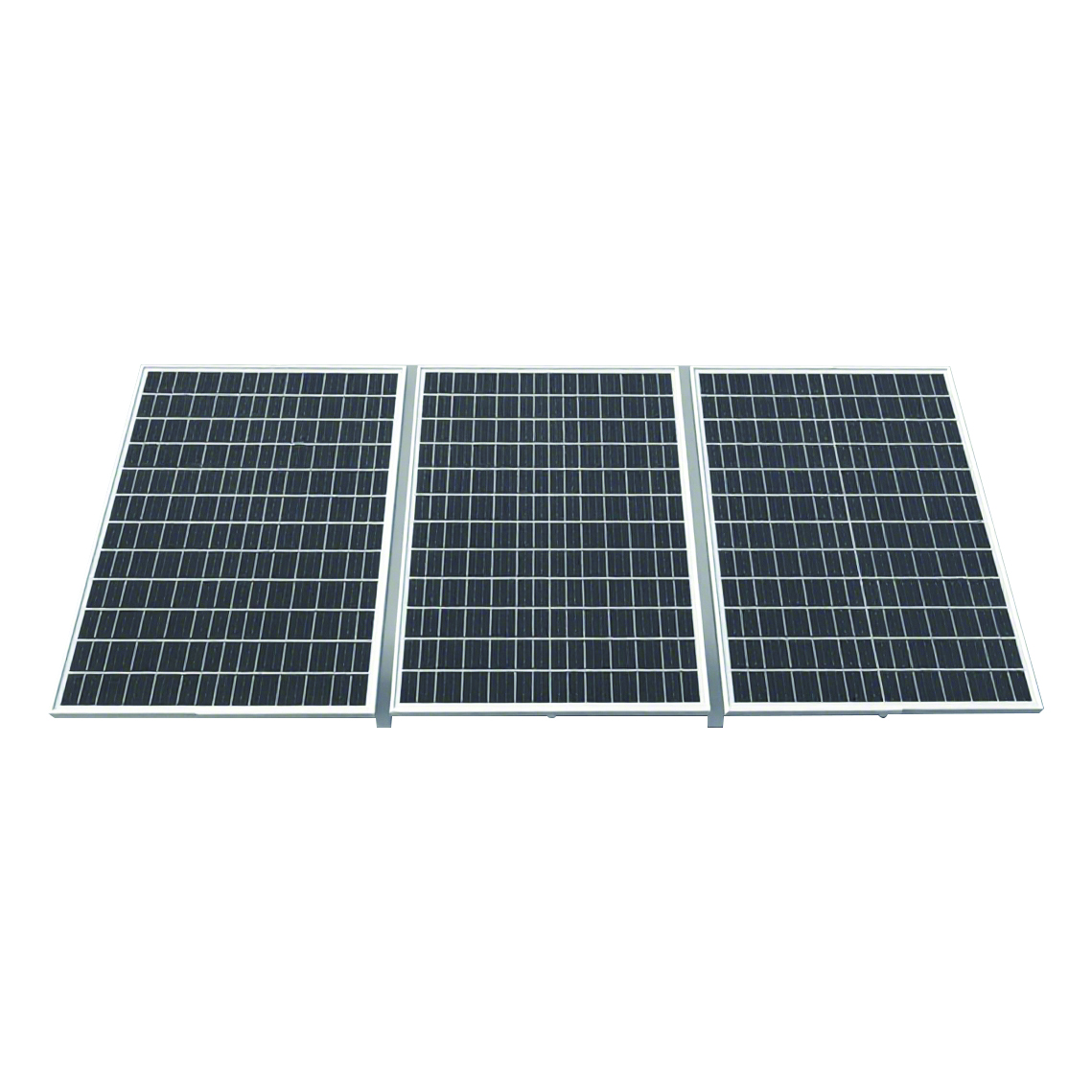

Front View

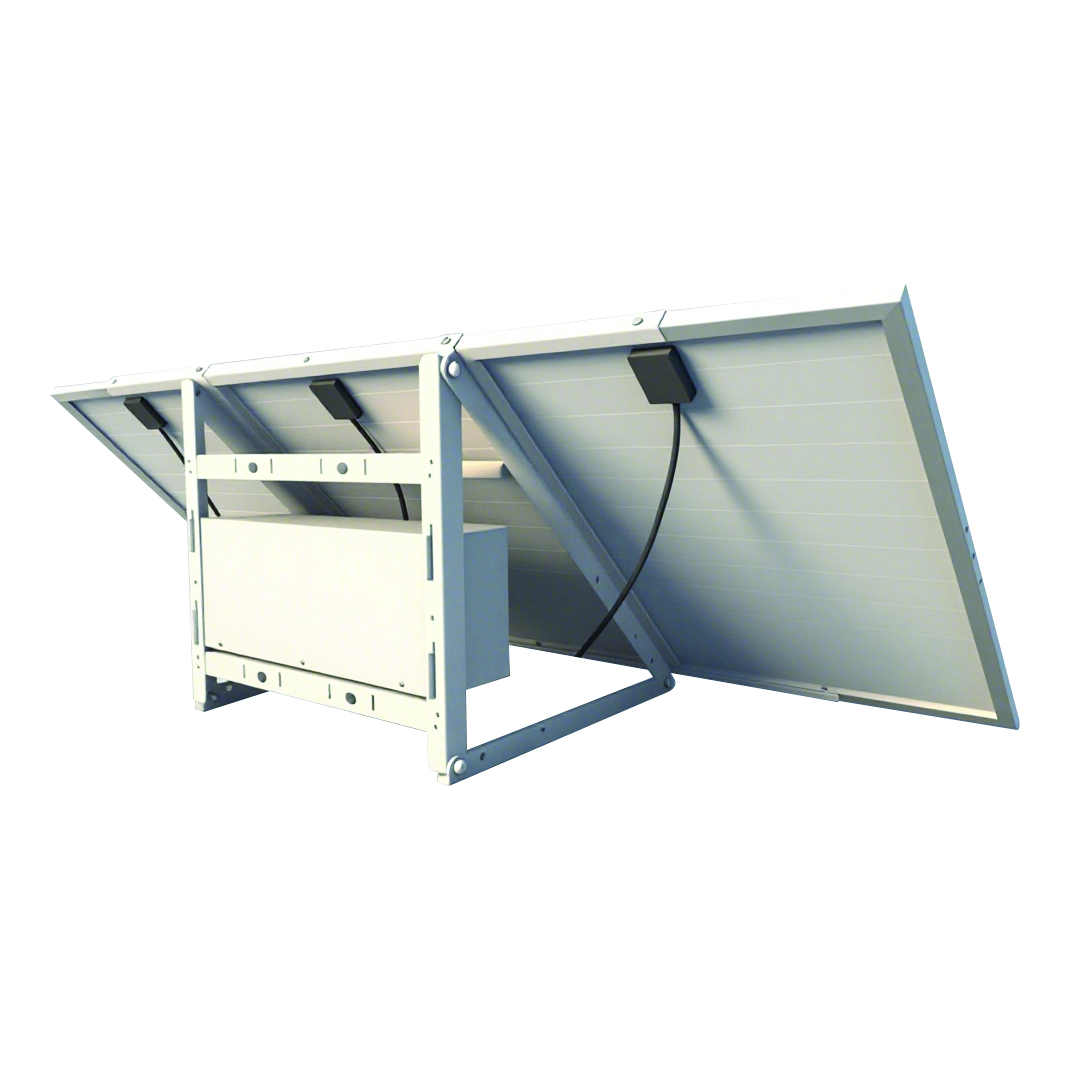

Rear View
Solar Station 120W Panel, 60Ah Battery
45MM-SS12060
Coming Soon
Product Summary
An off-grid, all-in-one Solar Power Supply System pairing a 120W solar panel with a 60Ah lithium battery pack (approx. 666Wh). Designed for a constant 10-12W (12V) load 24/7, it's ideal for CCTV or data systems in remote locations, particularly multiple PoE camera installations and/or wireless bridges daisy-chaining over, or around, a hill.
View More Solar
Features and Benefits
- An MPPT smart charge controller with built-in surge protection maximises energy harvest from the solar panel, even in low-light or cloudy conditions, while protecting the system from power spikes.
- The battery housing sits inside the panel frame, adding strength in high-wind environments, with wall mounting also available.
- Higher-capacity output supports multiple PoE camera installations and/or wireless bridges daisy-chained over or around a hill.
- Powder coating and zinc plating provide two layers of weather protection, adding longevity in outdoor, all-weather deployments.
- A battery indicator shows current battery level, charging status, and electrical load at a glance, with 2 x 12V DC outputs (2.1mm plug) to power connected equipment.
- A wide operating temperature range of 0°C to 45°C for charging and -20°C to 60°C for discharging (15°C to 35°C recommended) keeps it performing reliably across harsh or variable site conditions.
Specifications
Lithium battery
| Battery Capacity | 60AH/666WH |
| Reted Energy | 666WH |
| Limited Charge Voltage | 9V |
| Outout Voltage | 9V-12.6V (Depends on the percentage of battery level) |
| Maximum output Current | 6A |
| Input interface type | 2-pin quick connector (for batery switch) |
| Outout Interface type | DC12V 5.5*2.1mm circular connector |
| Outout Interface type (OEM) | DC5V type C, USB port ( OEM optional) |
| Battery quantity | 18650 Ternary lithium battery 3.7V 2000MA battery*90pcs |
| Battery bracket Dimensions | 390x390x420mm |
| Protection Function | high/low temperature protection, overcharge protection, undervoltage protection |
Solar Panel
| Peak Power | 120W (3pcs 40W) |
| Operating Voltage | 9-12.6 V (Depends on the percentage of battery level) |
| Operating Current | 0-10A (Follow the sunlight intensity) |
| Open Circuit Voltage | 9.03V |
| Short Circuit Current | 15A |
| Cell Conversion efficiency | ≥26% |
| Output Interface type | 2-pin quick connector (for batery switch) |
| Dimensions | 530x390x16MM *3pcs |
Operation and Maintenance Module
| Open Circuit Voltage | 12V Stably output |
| Charing input | Recommend DC12.6V 5A charging to solar power system |
| Battery life in rainy and cloudy days(no sunlight day) | Full power battery can working 5-10 days for normal 4G or wifi cameras |
| Indicator | Bule Falsh: battery under charging out side Red flash: battery give power to cameras or devices |
| Package size | 820x180x490 mm |
| Waterproof | IP66 outdoor |
| Power cable | 2pcs DC12V output (5.5*2.1mm round pin) |
Operation and Maintenance Module
| Operating Temperature | -40℃ to 60 ℃ |
| Gross weight | 17kg |
Gernaral
| Package inside List | Solar panels : 40W*3pcs Battery bracket*1pc 340 Stainless Steel Clamp*4pcs User manual book*1pc Screw |
