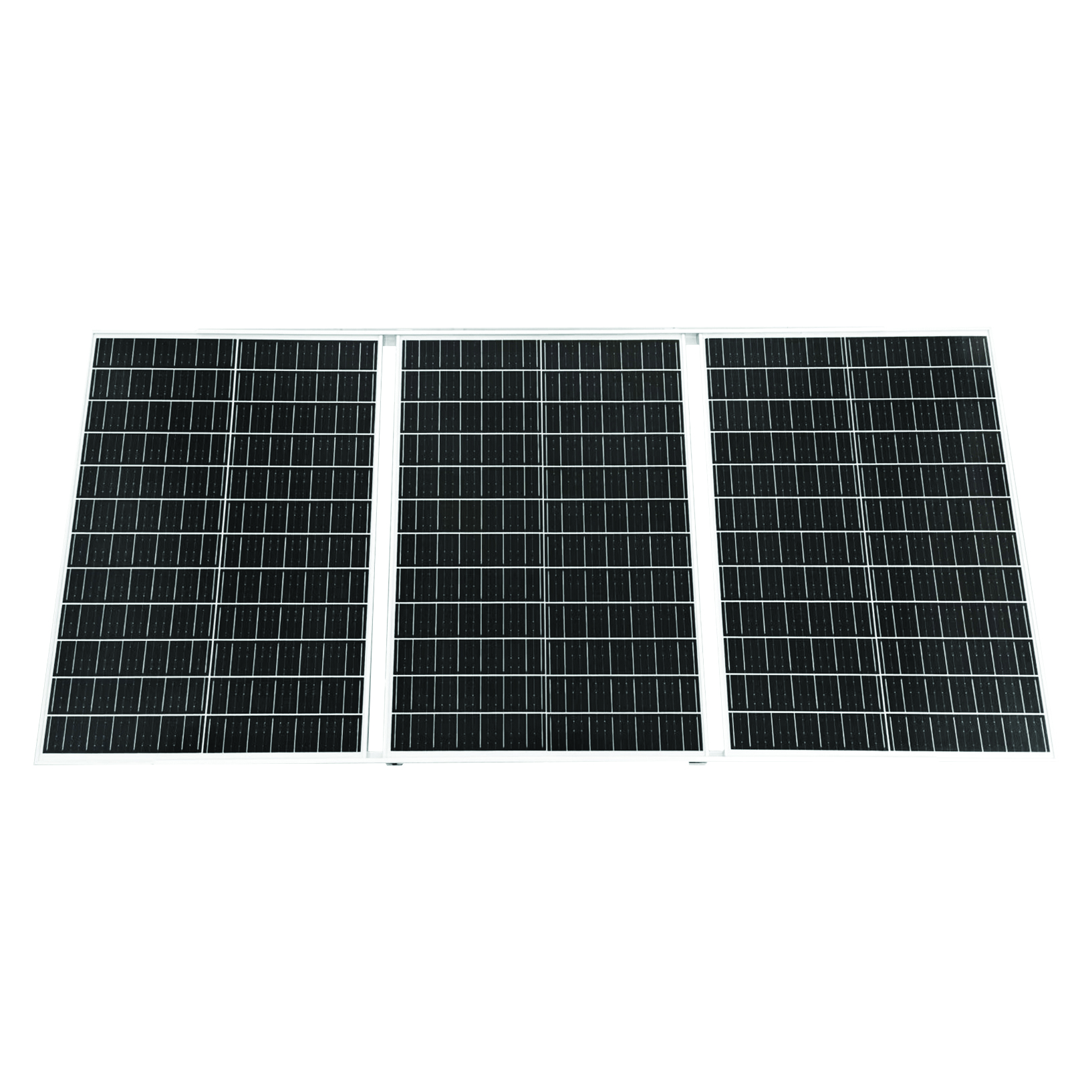

Front View

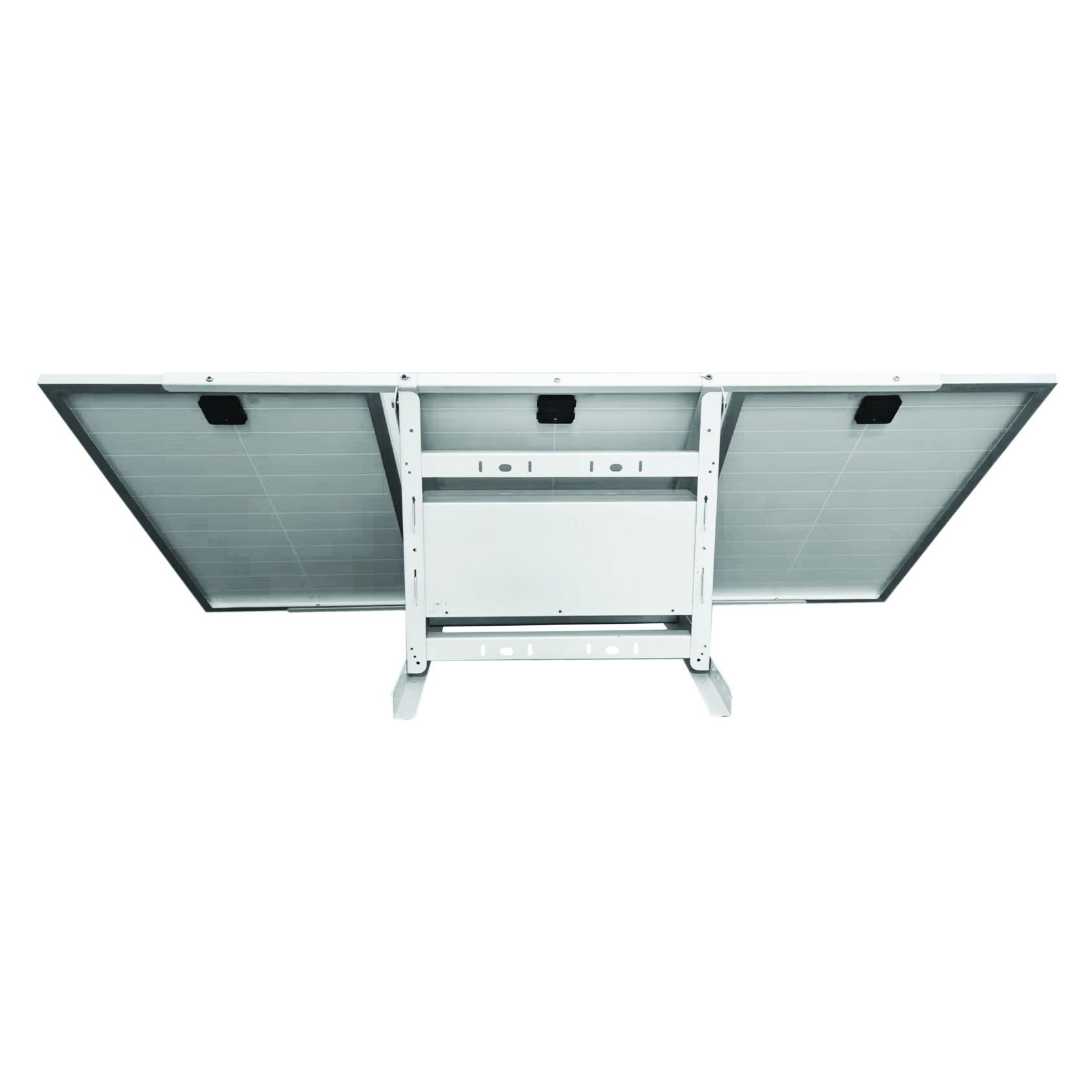

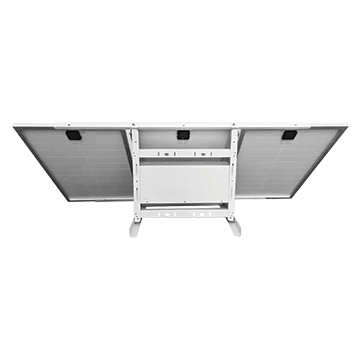

Rear View
Solar Station 180W Panel, 100Ah Battery
45MM-SS180100
Coming Soon
Product Summary
An off-grid, all-in-one Solar Power Supply System pairing a 180W solar panel with a 100Ah lithium battery pack (approx. 1110Wh). Designed for a constant 16-19W (12V) load 24/7, it's ideal for CCTV or data systems in remote locations, particularly larger multiple PoE camera installations and/or wireless bridges.
View More Solar
Features and Benefits
- An MPPT smart charge controller with built-in surge protection maximises energy harvest from the solar panel, even in low-light or cloudy conditions, while protecting the system from power spikes.
- Higher-capacity output supports larger, multiple PoE camera installations and/or wireless bridges.
- A powder-coated steel frame and battery box give a high level of weather protection for added longevity.
- A battery indicator shows current battery level, charging status, and electrical load at a glance, with 2 x 12V DC outputs (2.1mm plug) to power connected equipment.
- A wide operating temperature range of 0°C to 45°C for charging and -20°C to 60°C for discharging (15°C to 35°C recommended) keeps it performing reliably across harsh or variable site conditions.
- The panel's three-piece design (680 x 440 x 16mm per panel, 1360 x 680mm overall) delivers a larger energy-capturing surface while keeping each panel compact and easy to handle on site.
Specifications
Lithium battery
| Battery Capacity | 100AH/1110WH |
| Reted Energy | 1110WH |
| Limited Charge Voltage | 9V |
| Outout Voltage | 9V-12.6V (Depends on the percentage of battery level) |
| Maximum output Current | 10A |
| Input interface type | 2-pin quick connector (for batery switch) |
| Outout Interface type | DC12V 5.5*2.1mm circular connector |
| Outout Interface type (OEM) | DC5V type C, USB port ( OEM optional) |
| Battery quantity | 18650 Ternary lithium battery 3.7V 2000MA battery*150pcs |
| Battery bracket Dimensions | 430x560x440mm |
| Protection Function | high/low temperature protection, overcharge protection, undervoltage protection |
Solar Panel
| Peak Power | 60W (3pcsx60W) |
| Operating Voltage | 9-12.6 V (Depends on the percentage of battery level) |
| Operating Current | 0-12A (Follow the sunlight intensity) |
| Open Circuit Voltage | 9.03V |
| Short Circuit Current | 15A |
| Cell Conversion efficiency | ≥26% |
| Output Interface type | 2-pin quick connector (for batery switch) |
| Dimensions | 680x440x16MM *3pcs |
Operation and Maintenance Module
| Open Circuit Voltage | 12V Stably output |
| Charing input | Recommend DC12.6V 5A charging to solar power system |
| Battery life in rainy and cloudy days(no sunlight day) | Full power battery can working 8-15 days for normal 4G or wifi cameras |
| Indicator | Bule Falsh: battery under charging out side Red flash: battery give power to cameras or devices |
| Package size | 970x220x530 mm |
| Waterproof | IP66 outdoor |
| Power cable | 2pcs DC12V output (5.5*2.1mm round pin) |
| Operating Temperature | -40°C to 60 °C |
| Gross weight | 24.5kg |
Gernaral
| Package inside List | Solar panels : 60W*3pcs Battery bracket*1pc U type Stainless Steel Clamp*2pcs User manual book*1pc Screw |
