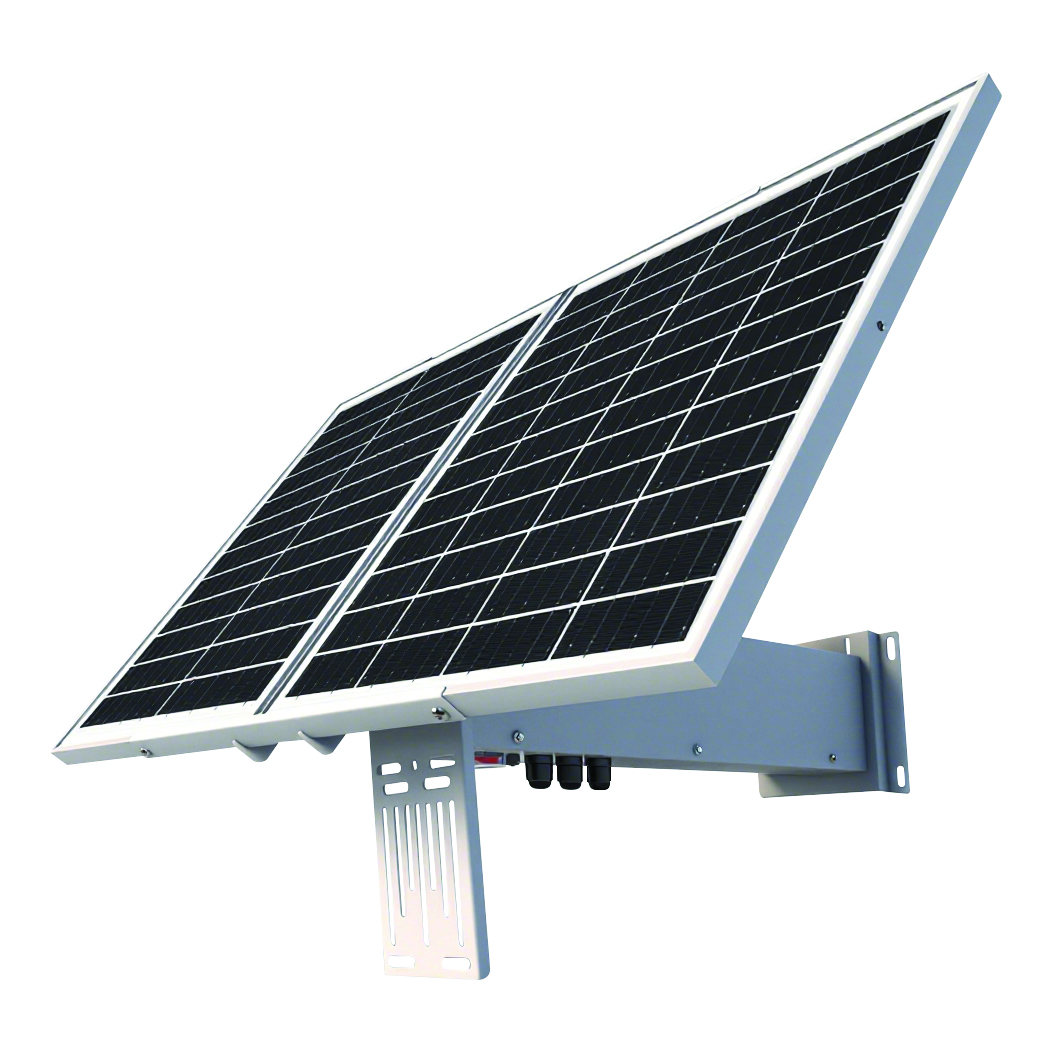

Front View

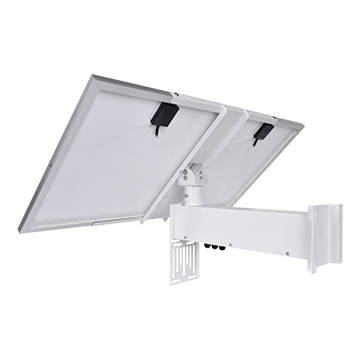

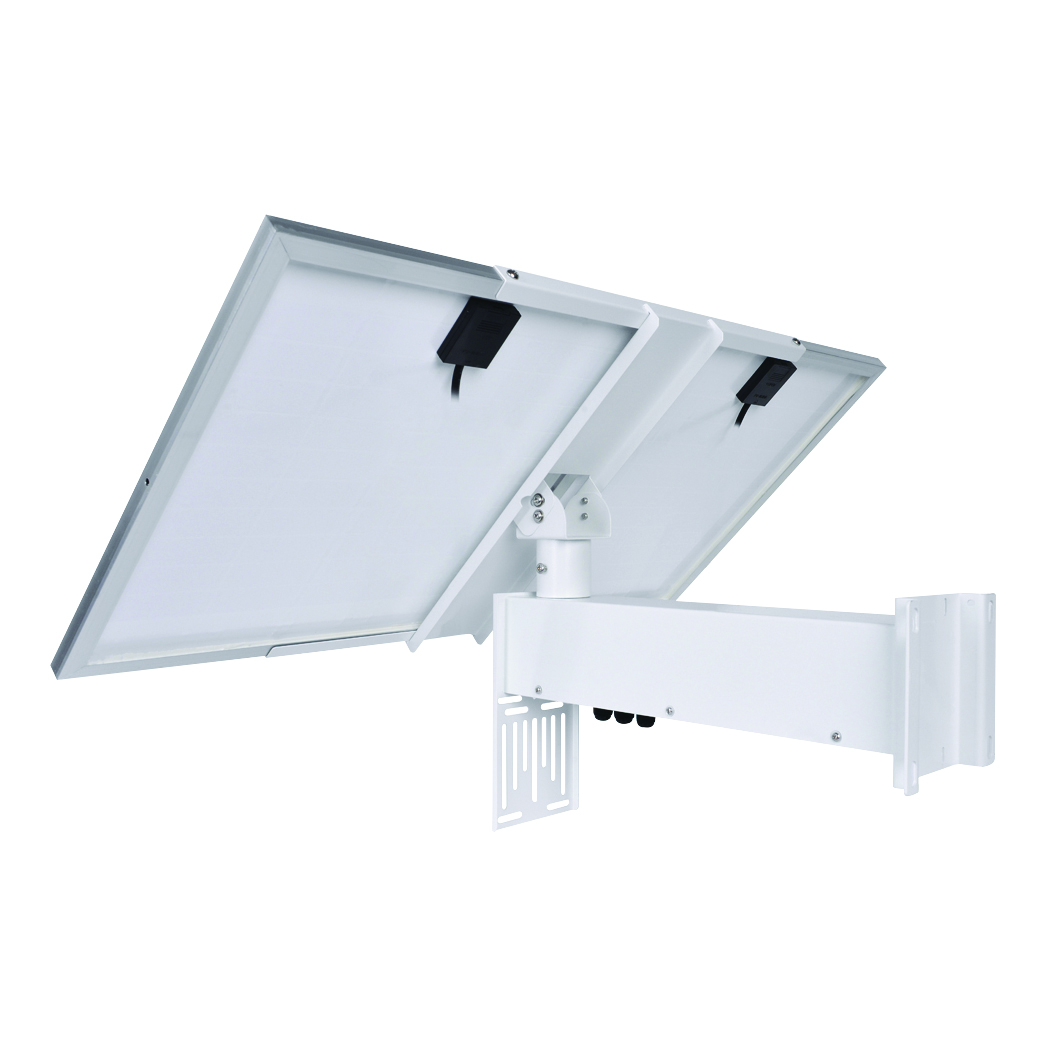

Rear View
Solar Station 60W Panel, 40Ah Battery
45MM-SS6040
Coming Soon
Product Summary
An off-grid, all-in-one Solar Power Supply System pairing a 60W solar panel with a built-in 40Ah lithium battery pack (approx. 444Wh). Designed for a constant 6–8W (12V) load 24/7, it's ideal for CCTV or data systems in remote locations, particularly single PoE camera installations, powering both the camera and one end of a wireless bridge for a complete surveillance solution wherever power and data aren't available.
View More Solar
Features and Benefits
- An MPPT smart charge controller with built-in surge protection maximises energy harvest from the solar panel, even in low-light or cloudy conditions, while protecting the system from power spikes.
- The battery housing doubles as a 360° pole mount (wall mounting also included), and the solar panel rotates 360° on top, so the whole unit can always be positioned to face the sun.
- The included attachment plate provides a ready-made mounting point for a camera and/or wireless bridge, so the entire surveillance setup mounts as one integrated unit.
- Powder coating and zinc plating provide two layers of weather protection, adding longevity in outdoor, all-weather deployments.
- A built-in battery indicator shows current battery level, charging status, and electrical load at a glance, with 2 x 12V DC outputs (2.1mm plug) to power connected equipment.
- A wide operating temperature range of 0°C to 45°C for charging and -20°C to 60°C for discharging (15°C to 35°C recommended) keeps it performing reliably across harsh or variable site conditions.
Specifications
Specificaiton sheet
Lithium battery
| Battery Capacity | 40AH |
| Reted Energy | 444WH |
| Limited Charge Voltage | 8V |
| Outout Voltage | 9V-12.6V (Depends on the percentage of battery level) |
| Maximum output Current | 5A |
| Input interface type | 4-pin quick connector (for batery switch) |
| Outout Interface type | DC12V 5.5*2.1mm circular connector |
| Outout Interface type (OEM) | DC5V type C, USB port ( OEM optional) |
| Battery quantity | 18650 Ternary lithium battery 3.7V 2000MA battery*60pcs |
| Battery bracket Dimensions | 400x75x75mm |
| Protection Function | high/low temperature protection, overcharge protection, undervoltage protection |
Solar Panel
| Peak Power | 60W (2pcs 30W) |
| Operating Voltage | 9-13.33V (Depends on the percentage of battery level) |
| Operating Current | 0-4.5A (Follow the sunlight intensity) |
| Open Circuit Voltage | 16V |
| Short Circuit Current | 4.95A |
| Cell Conversion efficiency | ≥26% |
| Output Interface type | 4-pin quick connector (for batery switch) |
| Dimensions | 395*400*16mm*2pcs |
Operation and Maintenance Module
| Open Circuit Voltage | 12V Stably output |
| Typical power Consumption | 0.54W |
| Maimum power Consumption | 60W |
| Charing input | Recommend DC12.6V 5A charging to solar power system |
| Battery life in rainy and cloudy days(no sunlight day) | Full power battery can working 4-5 days for normal 4G or wifi cameras |
| Indicator | Bule Falsh: battery under charging out side Red flash: battery give power to cameras or devices |
| Package size | 490x220x440 mm |
| Waterproof | IP66 outdoor |
| Power cable | 2pcs DC12V output (5.5*2.1mm round pin) |
Operation and Maintenance Module
| Operating Temperature | -40℃ to 60 ℃ |
| Gross weight | 9.2kg |
Gernaral
| Package inside List | Solar panels : 30W*2pcs Battery bracket*1pc 304 Stainless Steel Clamp*3pcs User manual book*1pc PTZ screws - some |
| Application | ALLtype DC12V 5V 24V 32V devices like: 4G camera, Wifi router, Wireless Bridge,alarm spaker, led lamp, Landslide Monitoring Instrument etc |
